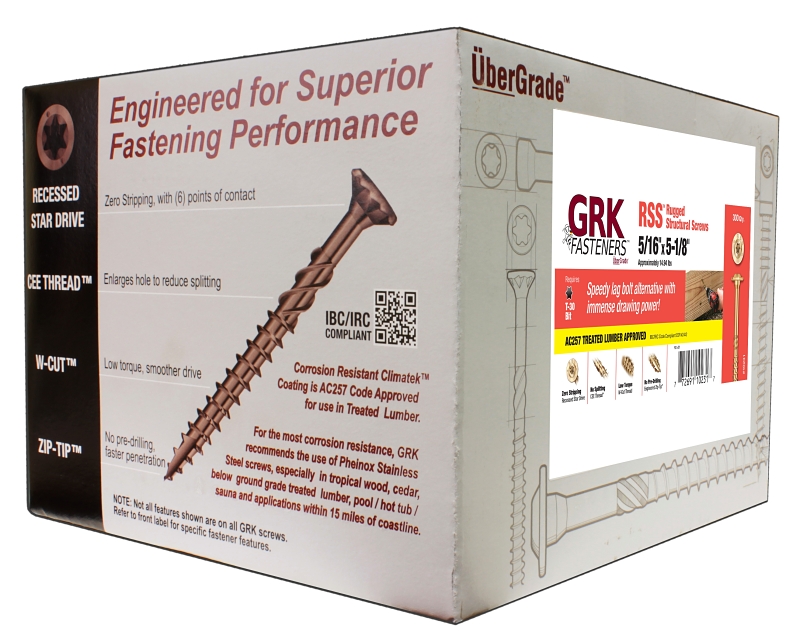

GRK Fasteners RSS 10231 Structural Screw, 5/16 in Thread, 5-1/8 in L, Washer Head, Star Drive, Steel, 300 BX

GRK Fasteners

GRK Fasteners RSS 10231 Structural Screw, 5/16 in Thread, 5-1/8 in L, Washer Head, Star Drive, Steel, 300 BX

$242.00$242.00
GRK Fasteners RSS 10231 Structural Screw, 5/16 in Thread, 5-1/8 in L, Washer Head, Star Drive, Steel, 300 BX
  • Applicable Materials: Wood
  • Drive Size: T-30
  • Drive Type: Star
  • Head Type: Washer
  • Length: 5-1/8
  • Model #: 10231
  • UPC #: 772691102317
  • SKU: 2816312

Your shopping list will be used for pickup in-store

Product Details

GRK's RSSâ„¢ screw is made of specially hardened steel to provide you with high tensile, torque and shear strength. The sharp threads and points bite instantly into the material (including hardwood), reducing the splitting effect due to smaller shanks. RSSâ„¢ screws that are 3-1/8 in and longer have CEE threads which enlarge the screw hole for the non-threaded portion of the fastener, allowing the wood to settle easily and increases the screw's drawing strength. The CEE thread also reduces the friction on the screw shank which can result in lowering the driving torque and the likelihood of splitting the wood. This is why the RSSâ„¢ screw is an efficient lag screw alternative. Our round head with built-in shield (washer type head) has no sharp edges like conventional lag screws. The added shoulder (nominal diameter) underneath the washer has the ability to center the RSSâ„¢ screw in pre-drilled hardware like hinges and connector plates.

Key Features

  • Recessed star drive zero stripping, with six points of contact
  • CEE Thread™ enlarges hole to reduce splitting
  • W-Cut™ low torque, faster drive
  • Zip-Tip™ no pre-drilling, faster penetration
  • Washer head for immense holding power
  • Cutting pockets provide a clean hole and reduces splitting and bore with precision
  • Case hardened steel for high tensile, torque and shear strength
  • Climatek™ coating is AC257 code approved for use in treated lumber

Item Specifications

Applicable MaterialsWood
Drive SizeT-30
Drive TypeStar
Head TypeWasher
Length5-1/8
MaterialSteel
Package Quantity300 BX
Shear Strength2948 lb
Tensile Strength4247 lb
Thread Length3-1/2 in
Thread Size5/16 in
